Elevation AElevation B
2,617 sq. ft.
4 bedrooms

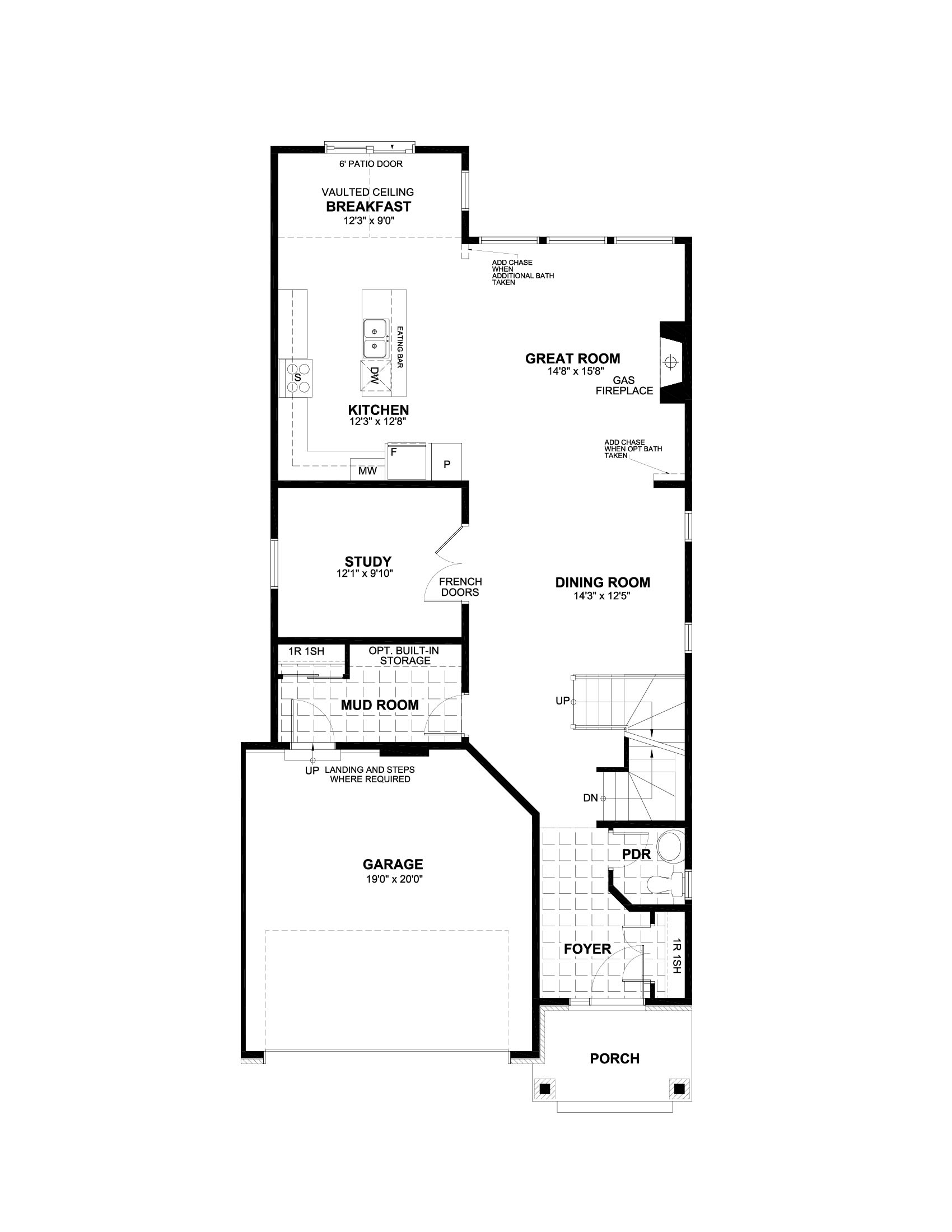

Ashton Floorplan Download Side-by-Side Floorplan Viewer

2ND FLOOR Floorplan
BASEMENT Floorplan
Additional Options Floorplan

Ashton Details

  • Fits on a 38′ lot
  • Elevation B is standard on this home.
  • Upgrade to Elevation A for an additional $5,000
  • State of the art efficiency and ENERGY STAR® qualified
  • Spacious kitchen with breakfast bar overlooking breakfast area with oversized patio doors
  • Family room features tons of natural light from the wall of windows at the rear of the home
  • Separate Dining Room
  • Large master bedroom with huge walk-in
  • 4-piece luxury ensuite with an oversized shower
  • Main-floor study accessed through French doors
  • Big Family Room with central fireplace
  • Convenient 2nd floor Laundry Room

Included Features

Incomparable Curb Appeal

Contemporary Kitchens

Better Basements

9' Ceilings & More Light


More Storage

Full Size Lots

Available In

  • Findlay Creek Village

    Starting From $534,900
    • Visit our community page for available bonuses!

    Early Occupancy Available for Findlay Creek Village

    now $$534,900 + $10,000 + $5,000
    lot 9, Ph 19 Findlay Creek

    available from December 4, 2017

    Granite countertops in kitchen, air conditioning, water line for fridge, under cabinet lighting in kitchen, microwave pocket, canopy hood fan, upgraded shower, corner unit extra brick

  • Havencrest

    Starting From $528,900
    • Visit our community page for available bonuses!
  • Poole Creek

    Starting From $522,900
    • Visit our community page for available bonuses!

    Early Occupancy Available for Poole Creek

    now $522,900 + $6,000
    lot 43 Ph 1 Poole Creek

    available from November 7, 2017

    Granite countertops in kitchen, Air conditioning, water line for fridge, 3 piece basement plumbing rough-in, under cabinet lighting in kitchen, canopy hoodfan, microwave pocket, upgraded shower

Ashton Specifications Download


All Tartan single family homes and bungalows are 100% ENERGY STAR® qualified, certified by independent third party inspectors as saving energy costs and reducing environmental impact. Every new home will meet the most current ENERGY STAR® New Home standards—which exceed the Ontario Building Code by 20% for insulation, air tightness and indoor air quality.

Key ENERGY STAR® saving features include:

  • All homes are individually inspected and certified by an independent representative of EnerQuality
  • Exterior walls are insulated with R27 & wrapped in Tyvek
  • Exterior basement walls are insulated with R24 insulation to the floor
  • Garage ceilings are insulated with Icynene to R32 value, where there is a finished room above
  • ENERGY STAR® low-E Argon windows on main floors
  • Low-expansion foam at all exterior windows and doors
  • ENERGY STAR® high efficiency 96% AFUE 2 stage gas furnace with a flow-through humidifier plus ECM motor
  • Dedicated Heat Recovery Ventilation system for better indoor air quality
  • ENERGY STAR® programmable heating/cooling thermostat
  • Sealed duct work throughout unfinished basements
  • Energy efficient LED bulbs
  • R10 value insulation under basement floor
  • R70 blown insulation in attic
  • Drain Water Heat Recovery system



  • 9-ft. high ceilings on the main floor
  • Smooth ceilings throughout
  • Clean face gas fireplace  with ceramic trim surround and custom Tartan mantle (as per plan)
  • One-sided fireplaces receive a fan kit
  • Oak spindles & handrails, with oak nosing under the spindles at 2nd floor stair opening (as per plan)
  • 4” colonial baseboards with coordinating window & door casings
  • Transom window above patio door on main floor (n/a at basement level of walkout units)
  • Window-ledge mouldings main-floor windows
  • Carrara-style passage doors, 7 ft high on main floor with trim detail
  • Carrara-style closet doors, slider or swing door (as per plan), 7 ft high on main floor with trim detail
  • Chrome door hardware,
  • Front door chime
  • French door(s) to sunroom or study (as per plan)
  • MDF cap on half walls (as per plan)
  • Interior walls painted with washable, low VOC (volatile organic compound) low-sheen paint from builder samples)
  • Standard ceramic floor tile in the kitchen, front entry, eating area, laundry, mudroom and all bathrooms
  • Engineered oak hardwood floors from Package ‘A’ in remaining ground floor areas
  • 40 oz nylon carpeting with 12mm underlay
  • Laundry pan and floor drain to be included under washer when installed on the main & 2nd floors
  • Upper cabinets with soft close doors (hinges), 5 ft wide in laundry area (not including unfinished basement laundry areas)
  • Built-in cabinets in mudroom or foyer (as per plan) with soft close doors (hinges)


  • Ceramic floor tile
  • Pedestal sink in powder room
  • Custom-crafted countertops and cabinets in main and ensuite bathrooms
  • Ensuite vanities to include bank of drawers with soft close drawers and doors (hinges) and to receive 2 sinks (where possible)
  • 3-piece bathrooms include ceramic wall enclosure with dropped ceiling above bathtub
  • 4-piece bathroom tubs & showers are trimmed with ceramic tile. Clear glass door on shower
  • Quality Delta faucets
  • Chrome towel bars and paper holders
  • Low-flush, water-saver toilet tanks
  • ‘Scald Guard’ pressure balance valve in all showers
  • Reinforcement for future grab bars in main bathroom


  • 40″ height upper kitchen cabinets; cabinet above stove is 6″ deep; cabinet above fridge is 30″ deep
  • Custom-crafted countertops and cabinets with soft close drawers and doors (hinges) (N/A with L-shaped corner cabinets)
  • Ceramic tile backsplash
  • Microwave hood fan
  • Rough-in for future dishwasher
  • Double stainless steel kitchen sink with one handle pull out kitchen faucet
  • Ceramic floor tile in kitchen and eating area
  • Eating bar (as per plan)
  • Kitchen pot light package (5 pot lights in predetermined locations)


  • Craftsman style exteriors featuring brick & stone detailing with rich vinyl siding colours
  • 40-yr. architectural roof shingles
  • Exterior soffit pot  or coach light package (as per plan)
  • Oversized basement windows
  • Low maintenance vinyl extruded windows throughout. All operational windows to be casement except basement windows. Windows are Low-E Argon with screens where applicable. Vinyl extruded Low-E Argon thermal patio door with screen and exterior light fixture at patio door
  • Aluminum soffit and fascia
  • Satin chrome grip set with dead bolt on front door
  • Frost-free hose bib in garage and at rear
  • Insulated, embossed metal or fiberglass front door and garage entrance door
  • Insulated 8’ height garage door
  • Municipal address number at front of home
  • Reinforced poured concrete front porch
  • On exterior front doors where there is no clear glass on the front door or side lights, a peep hole is required by building code
  • Fully drywalled garage interior (taped only)


  • Decora style switches & plugs
  • Ceiling light fixtures throughout including family room, great room, living room, and all bedrooms (except cathedral ceilings)
  • Track light installed in all cathedral/sloped areas (as per plan)
  • Capped ceiling light in dining room
  • 100 amp electrical panel with 40 circuit breakers
  • Two weather proof exterior outlets
  • Copper wiring
  • Energy efficient LED light bulbs
  • Exterior soffit light package (as per plan)
  • Minimum 1 electrical outlet in basement
  • Electrical outlet for future garage door opener
  • Carbon monoxide and smoke detectors where required by Building Code



  • Attic R70 value blown fiberglass insulation (R40 in cathedral ceilings)
  • Exterior walls R27 value insulation except at exterior garage wall
  • Full height R24 value basement wall batt insulation on exterior walls with 2×4 wood framing
  • Garage ceiling insulated with Icynene R32 Value
    (when finished area above garage)
  • Min. R6.2 value insulated garage door
  • Fully drywalled garage interior (taped only)
  • R10 insulation under basement floor


  • Foundation walls poured concrete 8” thick with steel reinforcement
  • Parging to exposed exterior portion of foundation wall
  • Basement floor 3” thick concrete with trowel finish
  • Garage floor 4” thick concrete with broom finish
  • Drainage layer waterproofing system to exterior of foundation walls (except garage walls)
  • Clear span pre-engineered floor joist system
  • Exterior walls are 2” x 6” at 16” stud space on centre
  • Garage walls are 2” x 4”
  • Interior walls are 2” x 4”, 2” x 6” or 2” x 8” (as per plan)
  • Basement walls are 2” x 4” at 24” stud space on centre (external walls only)
  • Prefabricated and engineered roof truss system
  • Roof sheathing 7/16” oriented strand board sheathing
  • 5/8” tongue and groove oriented strand board subfloor nailed, sanded and screwed with 5/8” plywood underlay for ceramic


  • 7 outlets (phone or cable). Phone outlet includes CAT 5e wiring and RJ45 faceplate. Cable outlet includes RG6U wiring and RJ45 faceplate (single location or combined in a double faceplate)
  • All wires to a collection point in the basement (under stairs)
  • Dedicated 110v receptacle at collection point
  • Pipe conduit from basement to attic for future wiring needs
  • Central vacuum rough-in dropped to basement


  • Dedicated Heat Recovery ventilation system (HRV) for the highest indoor air quality
  • ENERGY STAR® high efficiency 96% AFUE 2 stage gas furnace with a flow-through humidifier plus ECM motor
  • Enhanced energy efficient rental hot water system (tankless)
  • Programmable heating/cooling thermostat
  • Heating ducts sized for future air conditioning
  • Laundry tub in unfinished basement (as per plan)
  • Shut-off valves under all sinks
  • PEX water supply
  • Connection for washer and dryer
  • Minimum of 1 electrical outlet in basement
  • All ducts are power cleaned prior to occupancy


  • Fully-sodded  lot (or to tree line)
  • Some lots receive a tree (per landscape plan)
  • 6’ high cedar fence in backyard at property line (freehold units in Findlay Creek and Poole Creek only)
  • Paved driveway
  • Precast patio stone walkway
  • Wood steps at backyard


  • One-year Builder’s Warranty covering defects in material and workmanship
  • Two-year Extended Builder’s Warranty covering water penetration, mechanical and electrical systems and exterior cladding
  • Tarion seven-year warranty covering major structural defects
